Tungsten Alloy Grain Injection Moulding Part , ROHS Powder Injection Molding Process

Tungsten Alloy Grain Injection Moulding Part , ROHS Powder Injection Molding Process

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Tungsten Alloy Grain Injection Moulding Part , ROHS Powder Injection Molding Process Get Best Price

Product Details:
Place of Origin: China
Brand Name: KADAM
Certification: RoHs, Reach, MSDS...
Model Number: None
Payment & Shipping Terms:
Minimum Order Quantity: 50KG
Price: Negotiatable
Packaging Details: Plastic Drum
Delivery Time: 5-8 work days.
Payment Terms: T/T
Supply Ability: 300MT per month.
Detailed Product Description
Product Name: MIM Feedstock Brand: KADAM
Certificate: ROHS & REACH Type Of Substrate: Carbonyl
Shape: Grain Size: Standard
Delivery Terms: FOB Shenzhen Port Payment Terms: T/T In Advance
Package: Plastic Bucket MOQ: Could Be Negotiatable
Application: All Available Fabrication Type: POWDER INJECTION MOLDING
High Light:

Tungsten Alloy Injection Moulding Part

,

Grain Injection Moulding Part

,

ROHS Powder Injection Molding Process

KADAM Tungsten Alloy Feedstock W-Ni-Fe High Specific Gravity Alloy



Model Name: W-Ni-Fe

Power Type: Water Atomization

Specification: Heavy Alloy

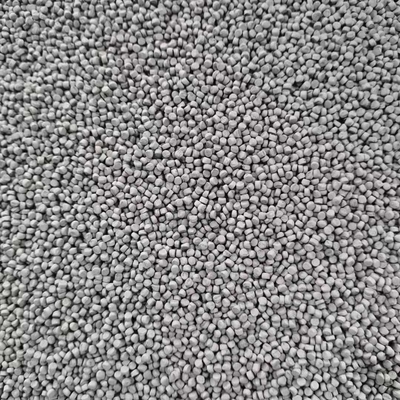

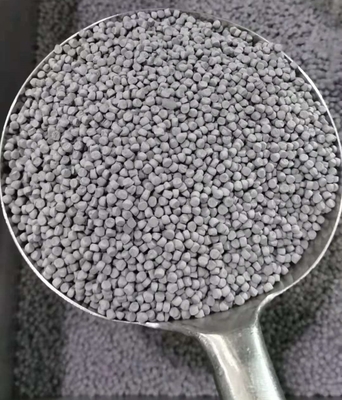

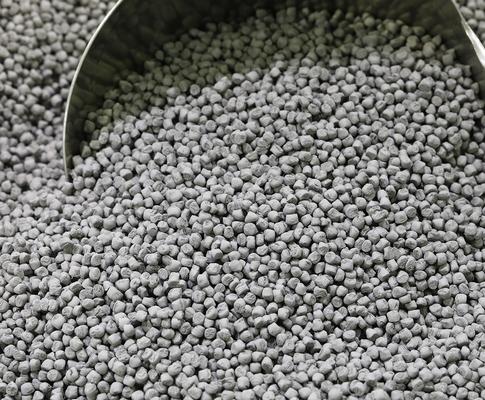

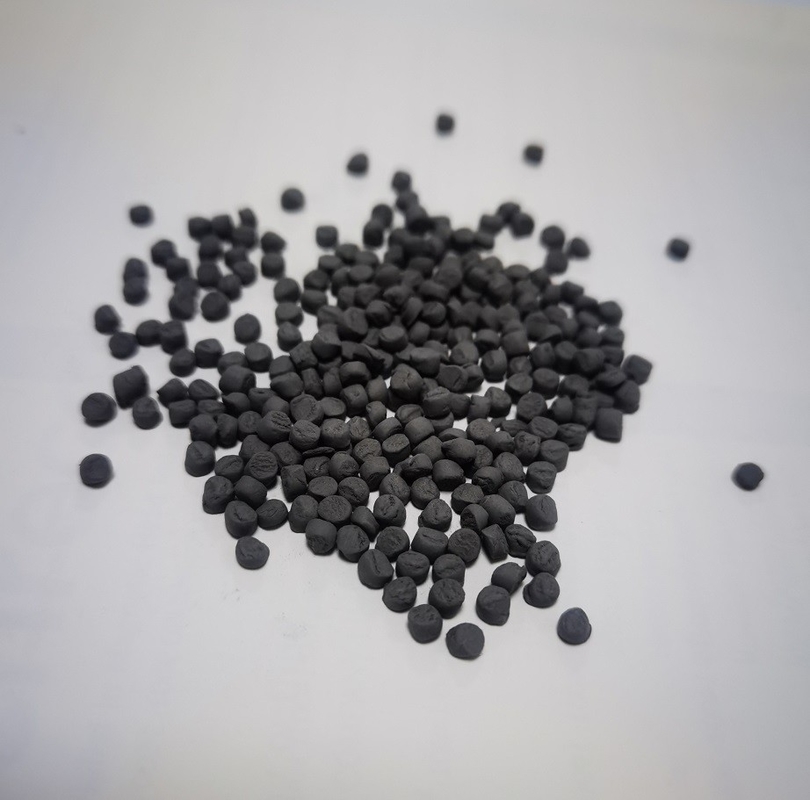

Product Description:W-Ni-Fe granule is water atomized powder based on the nitric acid or oxalic acid catalytic debinding system and can be used directly for injection molding to produce W-Ni-Fe high specific gravity alloy sintering parts.

Product Standard:



Item Unit Specification Test method
Melt flow index (MFI) g/10min6 00±500 ISO1133
Green part density g/cm3 7.98±0.03 ISO3369
Sintering density g/cm3 >18 ISO3369



Standard Processing:Standard injection molding machine for thermoplastic resins, based on the nitric acid or oxalic acid catalytic debinding system.



Injection Molding:



Injection

temperature

Zone 1 Zone 2 Zone 3 Nozzle
  180℃ 185℃ 190℃ 195℃
Mold temperature 90 ~ 125 ℃
Screw speed 50 r/min
Injection speed 10 cm3/s
Molding pressure 900 bar
Holding pressure 900 bar
Holding time 0.1~3 s






Stainless Steel MIM Metal Injection Molding Feedstock 17-4PH Customization Service Offered



Stainless Steel material powder metallurgy metal injection molding feedstock


How to work with us
1. Send us your request with oversized form factor, product shape, weight ect, so that we can recommend the right feedstock
2. Specify the requirements (quantity, good fluidity or normal fluidity, ect.) to us via email.



Manufacturing range Metal injection molding feedstock
OSF (oversized form factor) could be customized
Applicable Material stainless steel/titanium/brass/copper etc.
Our advantage 1. Rich experience in metal injection molding field.
2. Small order accepted for the beginning
3. New material develop capability.
4. Top quality guaranteed by skilled workers, managing system and status of facilities.
5.100% quality inspection before delivery
Payment Terms 50% deposit before production and 50% balance before arranging to ship





Tungsten Alloy Grain Injection Moulding Part , ROHS Powder Injection Molding Process 0



Tungsten Alloy Grain Injection Moulding Part , ROHS Powder Injection Molding Process 1





Tungsten Alloy Grain Injection Moulding Part , ROHS Powder Injection Molding Process 2



Tungsten Alloy Grain Injection Moulding Part , ROHS Powder Injection Molding Process 3Tungsten Alloy Grain Injection Moulding Part , ROHS Powder Injection Molding Process 4
