Product Details:
Payment & Shipping Terms:
|
| Product Name: | MIM Feedstock | Brand: | KADAM |
|---|---|---|---|
| Certificate: | ROHS & REACH | Type Of Substrate: | Carbonyl |
| Shape: | Grain | Size: | Standard |
| Delivery Terms: | FOB Shenzhen Port | Payment Terms: | T/T In Advance |
| Package: | Plastic Bucket | MOQ: | Could Be Negotiatable |
| Application: | All Available | Fabrication Type: | POWDER INJECTION MOLDING |
| High Light: | Fe2Ni05Mo Metal Injection Molding Feedstock,Alloy Steel Metal Injection Molding Feedstock,Fe4Ni05Mo Feedstock MIM |
||

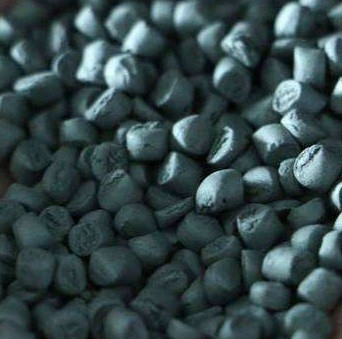

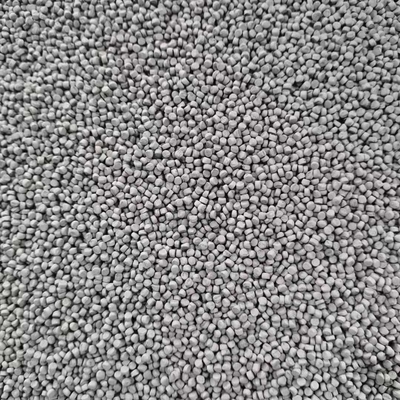

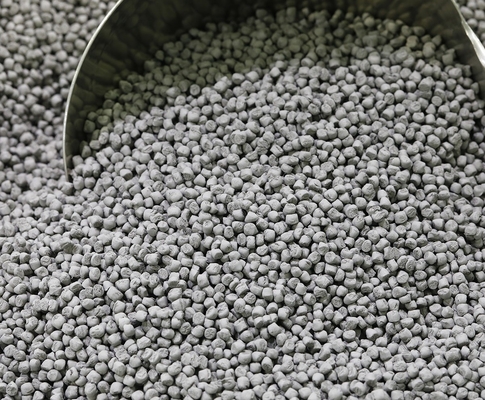

Ferritic Low Alloy Steel Fe2Ni05Mo Fe4Ni05Mo Fe8Ni05Mo 2200
Type of Substrate: Carbonyl
Specification: Ferritic low alloy steel, hardness and toughness can be strengthened by quenching or salt bath.
Standard Processing:Standard injection molding machine for thermoplastic resins, based on the nitric acid catalytic debinding system.
Injection Molding:
|
Injection temperature |
Zone 1 | Zone 2 | Zone 3 | Nozzle |
| 180℃ | 185℃ | 190℃ | 195℃ | |
| Mold temperature | 90 ~ 125 ℃ | |||
| Screw speed | 50 r/min | |||
| Injection speed | 10 cm3/s | |||
| Molding pressure | 900 bar | |||
| Holding pressure | 900 bar | |||
| Holding time | 0.1~3 s |
|||
Stainless Steel material powder metallurgy metal injection molding feedstock
How to work with us
1. Send us your request with oversized form factor, product shape, weight ect, so that we can recommend the right feedstock
2. Specify the requirements (quantity, good fluidity or normal fluidity, ect.) to us via email.
| Manufacturing range | Metal injection molding feedstock |
| OSF (oversized form factor) | could be customized |
| Applicable Material | stainless steel/titanium/brass/copper etc. |
| Our advantage | 1. Rich experience in metal injection molding field. 2. Small order accepted for the beginning 3. New material develop capability. 4. Top quality guaranteed by skilled workers, managing system and status of facilities. 5.100% quality inspection before delivery |
| Payment Terms | 50% deposit before production and 50% balance before arranging to ship |
