Product Details:
Payment & Shipping Terms:
|
Product Name: | MIM Feedstock | Brand: | KADAM |
---|---|---|---|
Certificate: | ROHS & REACH | Type Of Substrate: | Carbonyl |
Shape: | Grain | Size: | Standard |
Delivery Terms: | FOB Shenzhen Port | Payment Terms: | T/T In Advance |
Package: | Plastic Bucket | MOQ: | Could Be Negotiatable |
Application: | All Available | Fabrication Type: | POWDER INJECTION MOLDING |
High Light: | Catalytic Mim Metal Powder,Grain Mim Metal Powder,Carbonyl Stainless Steel Material |

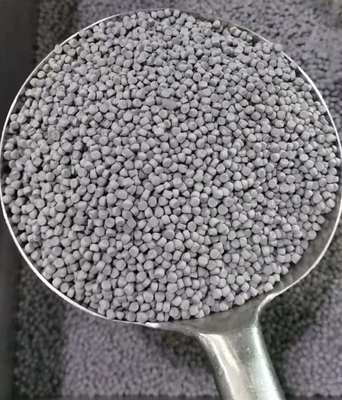

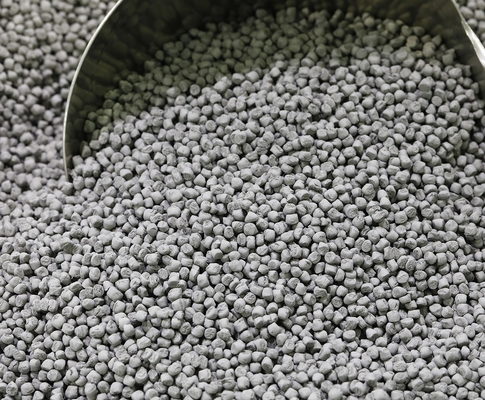

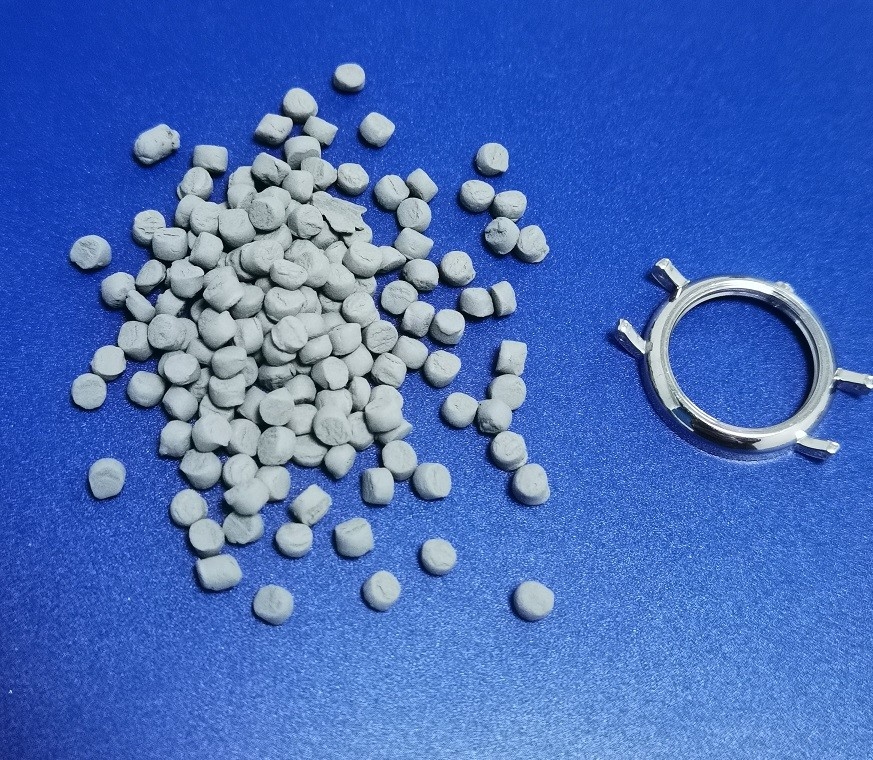

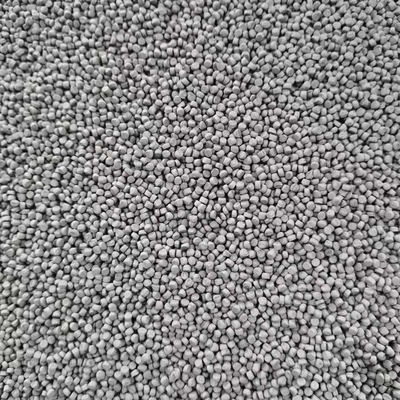

KADAM Catalytic Feedstock 17-4PHB Stainless Steel Material
Model Name: 17-4PHB
Power Type: Water Atomization
Specification: Precipitation hardening stainless steel, Suitable for general and non-polishing products.
Product Standard:
Item | Unit | Specification | Test method |
Melt flow index (MFI) | g/10min | 1500±500 | ISO1133 |
Green part density | g/cm3 | 5.35±0.03 | ISO3369 |
Sintering density | g/cm3 | >7.6 | ISO3369 |
Standard Processing: Standard injection molding machine for thermoplastic resins, based on the nitric acid or oxalic acid catalytic debinding system.
Injection Molding:
Injection temperature |
Zone 1 | Zone 2 | Zone 3 | Nozzle |
180℃ | 185℃ | 190℃ | 195℃ | |
Mold temperature | 90 ~ 125 ℃ | |||
Screw speed | 50 r/min | |||
Injection speed | 10 cm3/s | |||
Molding pressure | 900 bar | |||
Holding pressure | 900 bar | |||
Holding time | 0.1~3 s |
How to work with us
1. Send us your request with oversized form factor, product shape, weight ect, so that we can recommend the right feedstock
2. Specify the requirements (quantity, good fluidity or normal fluidity, ect.) to us via email.
Manufacturing range | Metal injection molding feedstock |
OSF (oversized form factor) | could be customized |
Applicable Material | stainless steel/titanium/brass/copper etc. |
Our advantage | 1. Rich experience in metal injection molding field. 2. Small order accepted for the beginning 3. New material develop capability. 4. Top quality guaranteed by skilled workers, managing system and status of facilities. 5.100% quality inspection before delivery |
Payment Terms | 50% deposit before production and 50% balance before arranging to ship |
Contact Person: Sales Manager
