Product Details:
Payment & Shipping Terms:
|
| Product Name: | Bronze Alloy Powder Feedstock | Shape: | Grain |
|---|---|---|---|
| Size: | Standard | Certificate: | RoHs & REACH |
| Color: | Gray/Standard | Packaging: | Plastic Bucket |
| Process: | Metal Injection Molding | Application: | Electronics And Other Applications. |
| Brand: | Kadam | ||
| High Light: | Bronze Alloy Feedstock MIM,Power Injection Feedstock MIM,Gray MIM Metal Powder |
||

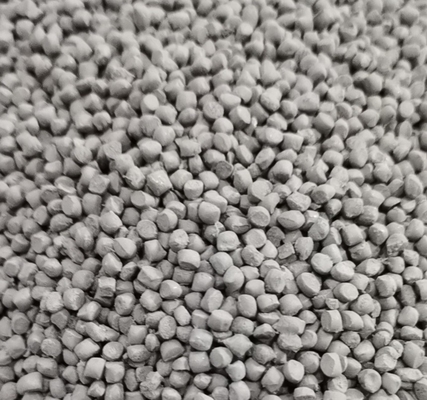

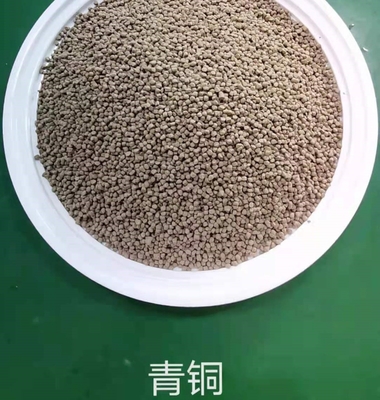

Bronze Alloy Power Injection Feedstock
Power Type: Gas Atomization
Specification: High Hardness, plasticity, wear resistance, corrosion resistance, bright color.
Manufacturing Process: MIM / Metal Injection Molding
Product Standard:
| Item | Unit | Specification | Test method |
| Melt flow index (MFI) | g/10min | 1500±500 | ISO1133 |
| Green part density | g/cm3 | 5.3±0.03 | ISO3369 |
| Sintering density | g/cm3 | >8.1 | ISO3369 |
Standard Processing: Standard injection molding machine for thermoplastic resins, based on the nitric acid catalytic debinding system.
Injection Molding:
|
Injection temperature |
Zone 1 | Zone 2 | Zone 3 | Nozzle |
| 180℃ | 185℃ | 190℃ | 195℃ | |
| Mold temperature | 90 ~ 125 ℃ | |||
| Screw speed | 50 r/min | |||
| Injection speed | 10 cm3/s | |||
| Molding pressure | 900 bar | |||
| Holding pressure | 900 bar | |||
| Holding time | 0.1~3 s |
|||
Stainless Steel material powder metallurgy metal injection molding sintered parts MIM products.
How to work with us
1. Send us 3D drawing (STEP/IGS/SolidWorks format etc. )
2. Specify the requirements (quantity, material, and surface finish requirements etc) to us via email.
| Manufacturing range | Metal injection molding products and MIM material development and manufacturing. |
| color | could be customized |
| Applicable Material | stainless steel/titanium/brass/copper etc. |
| Our advantage | 1. Rich experience in metal injection molding field. 2. Small order accepted for the beginning 3. New material develop capability. 4. Top quality guaranteed by skilled workers, managing system and status of facilities. 5.100% quality inspection before delivery |
| Surface finsih | Natural machined color/anodized finish/ coating / Passivation / PVD finish/nickel white/brush/heat treatment/fine glass beads/grounding/tumbled finish etc. |
| Payment Terms | 50% deposit before production and 50% balance before arranging to ship |
