Product Details:
Payment & Shipping Terms:
|
| Product Name: | MIM Feedstock | Brand: | KADAM |
|---|---|---|---|
| Certificate: | ROHS & REACH | Type Of Substrate: | Carbonyl |
| Shape: | Grain | Size: | Standard |
| Delivery Terms: | FOB Shenzhen Port | Payment Terms: | T/T In Advance |
| Package: | Plastic Bucket | MOQ: | Could Be Negotiatable |
| Application: | All Available | Fabrication Type: | POWDER INJECTION MOLDING |
| High Light: | Grain Metal Powder Injection Molding,Tungsten Alloy Metal Powder Injection Molding,Carbonyl MIM Material |
||

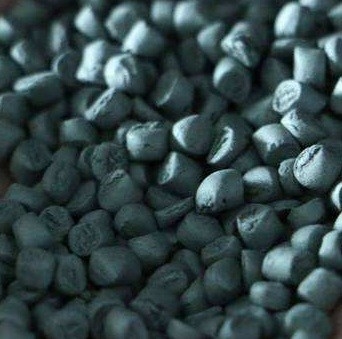

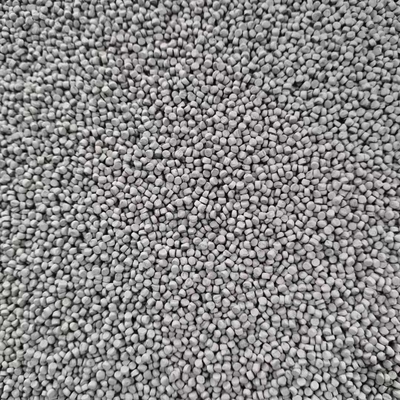

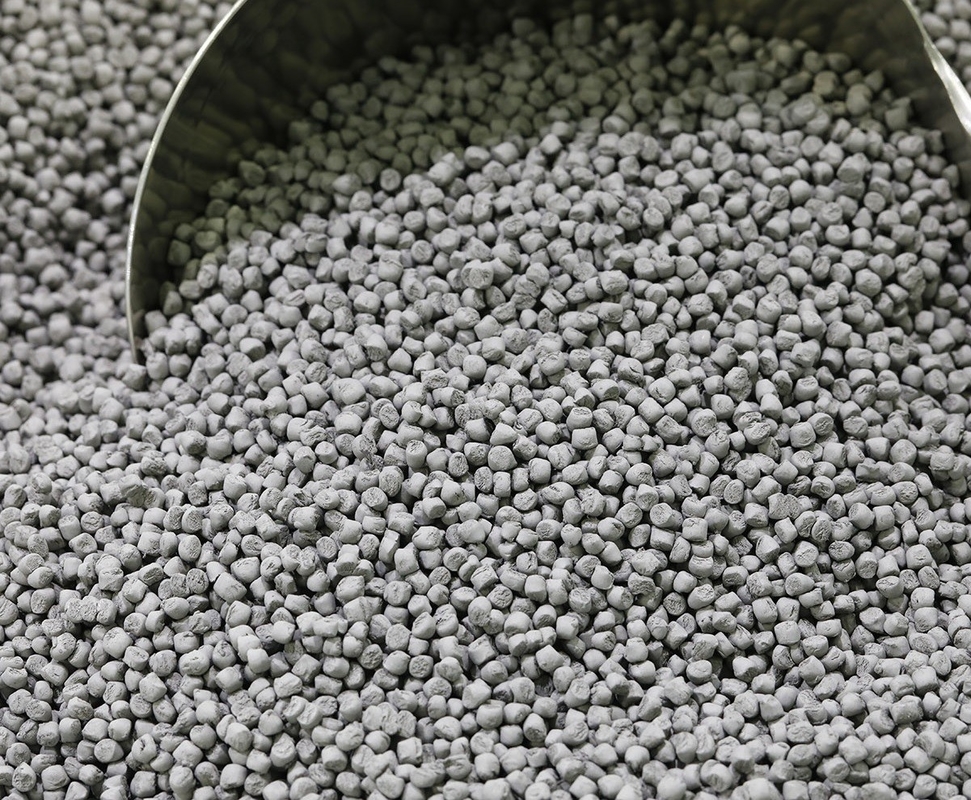

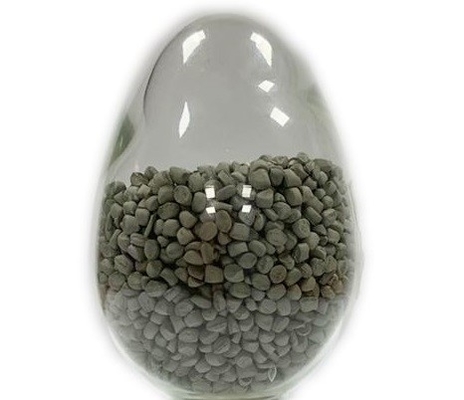

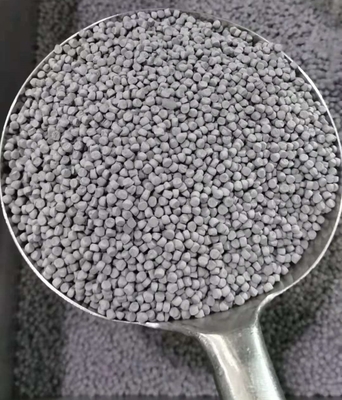

Fe3.5Si Soft Magnetic MIM Feedstock
Model No.: KDMFe3.5Si
Type Of Substrate: Gas Atomization
Scale of Applications: As iron cores for generators and transformers, Fe3Si has also been made into audio or video heads, card readers etc.
Product DescriptionProduct Standard:
| Item | Unit | Specification | Test method |
| Melt flow index (MFI) | g/10min | 1000±500 | ISO1133 |
| Green part density | g/cm3 | 5.25±0.03 | ISO3369 |
| Sintering density | g/cm3 | >7.5 | ISO3369 |
Standard Processing:Standard injection molding machine for thermoplastic resins, based on the nitric acid catalytic debinding system.
Injection Molding:
|
Injection temperature |
Zone 1 | Zone 2 | Zone 3 | Nozzle |
| 180℃ | 185℃ | 190℃ | 195℃ | |
| Mold temperature | 90 ~ 125 ℃ | |||
| Screw speed | 50 r/min | |||
| Injection speed | 10 cm3/s | |||
| Molding pressure | 900 bar | |||
| Holding pressure | 900 bar | |||
| Holding time | 0.1~3 s | |||
How to work with us:
1. Send us 3D drawing (STEP/IGS/SolidWorks format etc. )
2. Specify the requirements (quantity, material, and surface finish requirements etc) to us via email.
| Manufacturing range | MIM Metal Injection Molding |
| Application | Any Industry, All customized. |
| Applicable Material | stainless steel/titanium/brass/copper etc. |
| Our advantage | 1. Rich experience in metal injection molding field. 2. Small order accepted for the beginning 3. New material develop capability. 4. Top quality guaranteed by skilled workers, managing system and status of facilities. 5.100% quality inspection before delivery |
| Surface finsih | Natural machined color/anodized finish/ coating / Passivation / PVD finish/nickel white/brush/heat treatment/fine glass beads/grounding/tumbled finish etc. |
| Payment Terms | 50% deposit before production and 50% balance before arranging to ship |
