Product Details:
Payment & Shipping Terms:
|
| Product Name: | MIM Feedstock | Brand: | KADAM |
|---|---|---|---|
| Certificate: | ROHS & REACH | Type Of Substrate: | Carbonyl |
| Shape: | Grain | Size: | Standard |
| Delivery Terms: | FOB Shenzhen Port | Payment Terms: | T/T In Advance |
| Package: | Plastic Bucket | MOQ: | Could Be Negotiatable |
| Application: | All Available | Fabrication Type: | POWDER INJECTION MOLDING |
| High Light: | ISO9001 Metal Injection Molding Feedstock,Alloy Metal Injection Molding Feedstock,Wear Resistance Metal Injection Molding Materials |
||

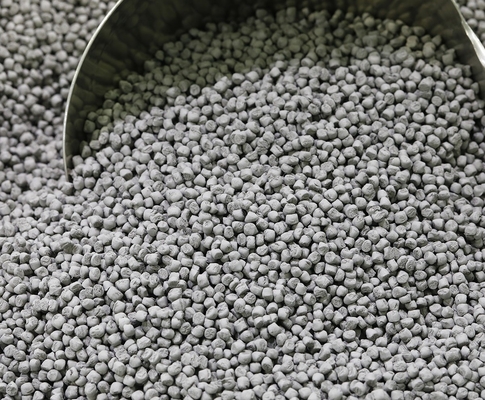

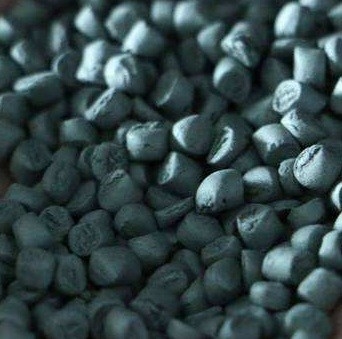

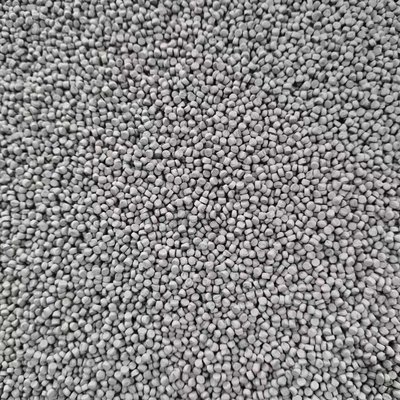

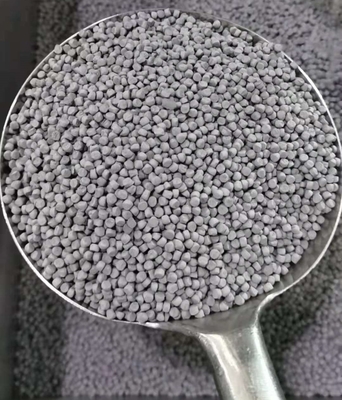

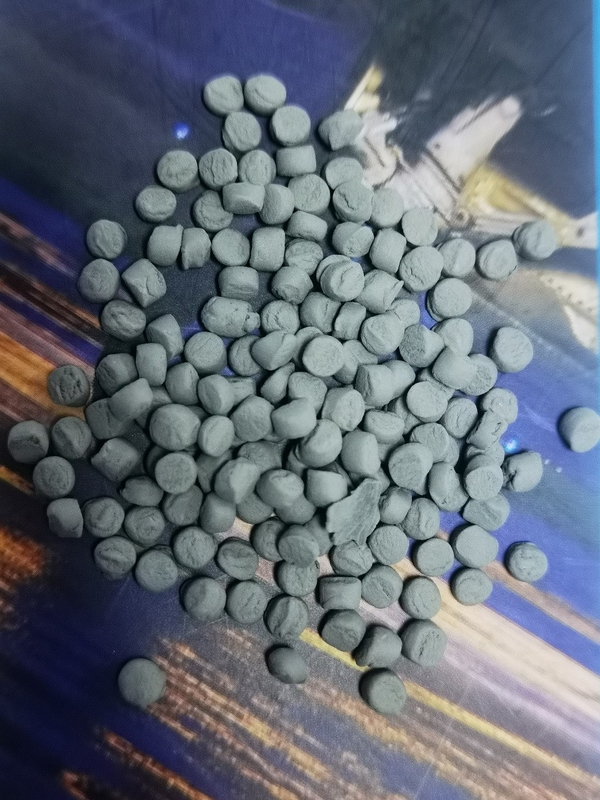

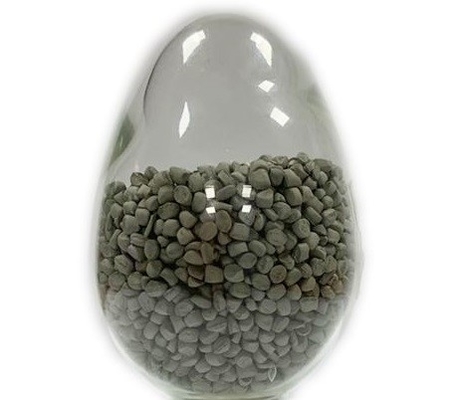

Model No.: KDM440, KADAM MIM Feedstock Stainless Steel Series RoHs Approved ISO9001 Certified
Product DescriptionAdvantages: General die steel, has good wear resistance and quenching property.
Product Standard:
| Item | Unit | Specification | Test method |
| Melt flow index (MFI) | g/10min | 1000±500 | ISO1133 |
| Green part density | g/cm3 | 5.31±0.03 | ISO3369 |
| Sintering density | g/cm3 | ≥7.5 | ISO3369 |
Standard Processing:Standard injection molding machine for thermoplastic resins, based on the nitric acid catalytic debinding system.
Injection Molding:
|
Injection temperature |
Zone 1 | Zone 2 | Zone 3 | Nozzle |
| 180℃ | 185℃ | 190℃ | 195℃ | |
| Mold temperature | 90 ~ 125 ℃ | |||
| Screw speed | 50 r/min | |||
| Injection speed | 10 cm3/s | |||
| Molding pressure | 900 bar | |||
| Holding pressure | 900 bar | |||
| Holding time | 0.1~3 s | |||
Contact Person: Sales Manager
